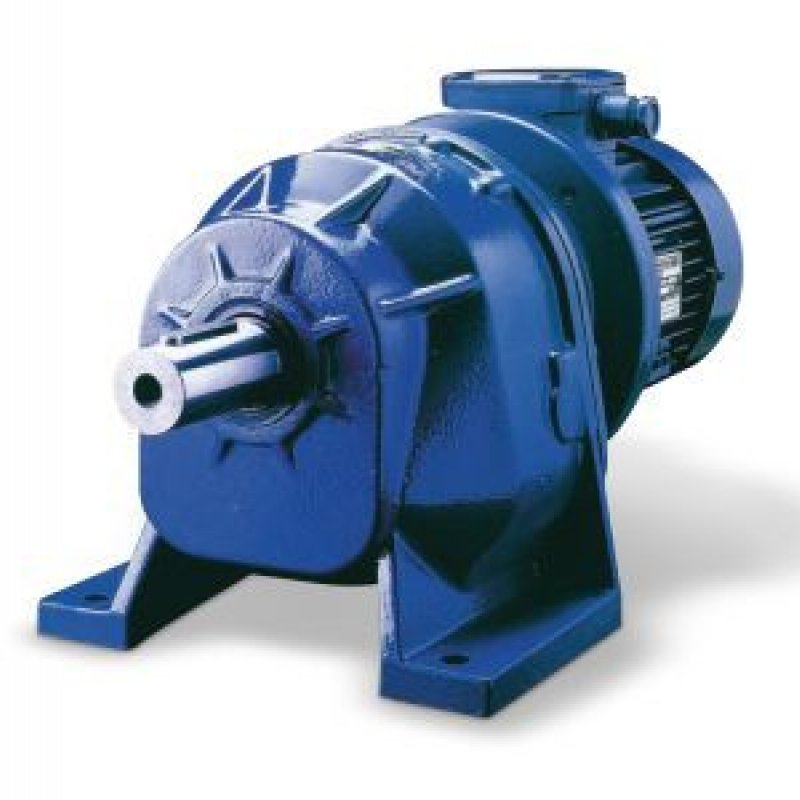

RT - RM - RF SERISI
- Sizes: 040-050-063-080-100-125
- Available versions: R – fitted for motor coupling, IR – with input shaft
- Casing with feet T, flange F and with low output shaft centre M
- Gearing with 1, 2 and 3 reduction stages
- Reduction ratios between 1,4 and 250
- Efficiency from 0.96 to 0,985
- Power from 0,12 up to 30 kW
- Torque max 3.200 Nm
- Admissible radial loads max 34.700 N
- Cases in G200 cast iron for high strength
- Lubrication with mineral oil
- Gears hardened and tempered with ground profile
- Excellent mechanical strength, particularly suitable to support high axial loads and high reliability
- Painted with RAL 5010 blue epoxy-polyester powder according to DIN 1843
