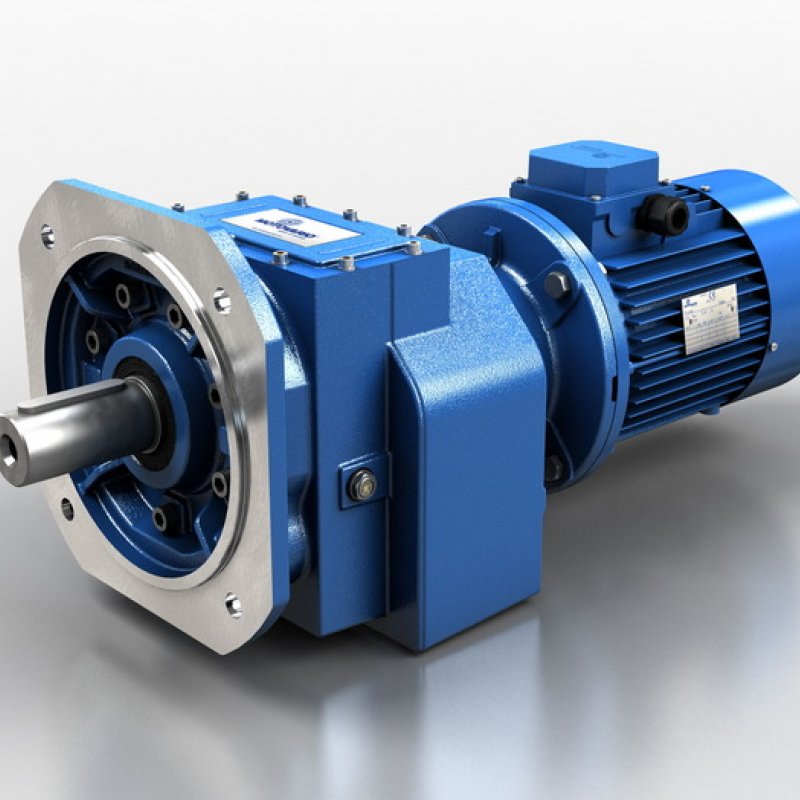

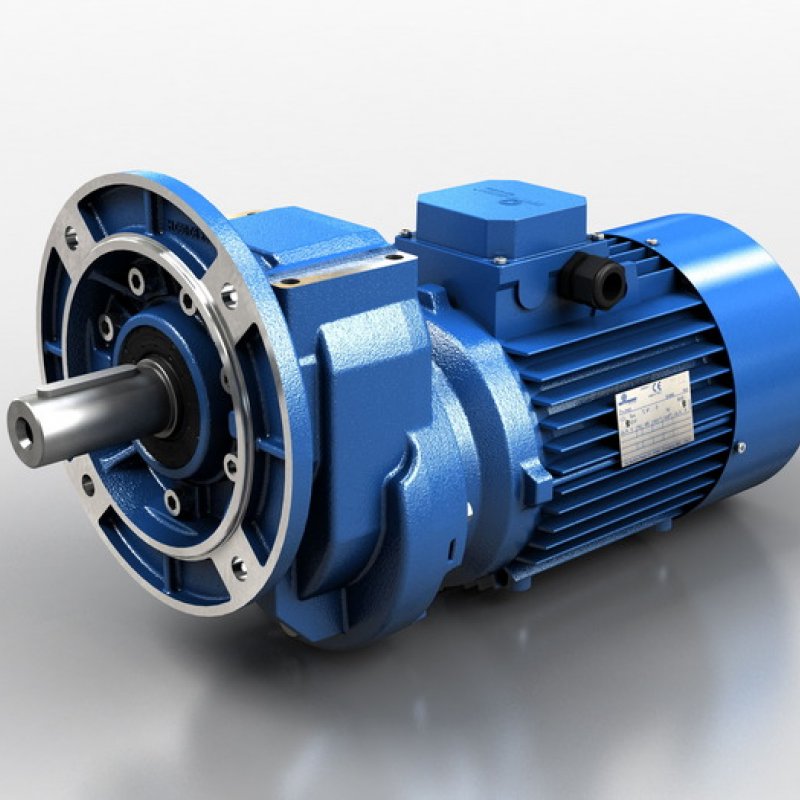

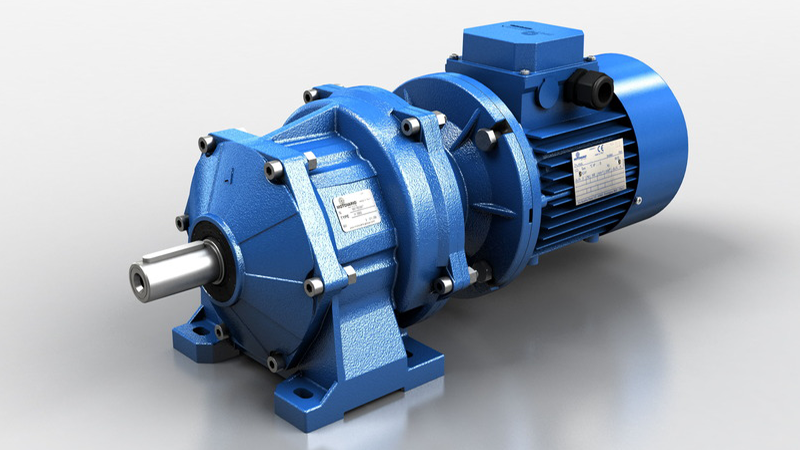

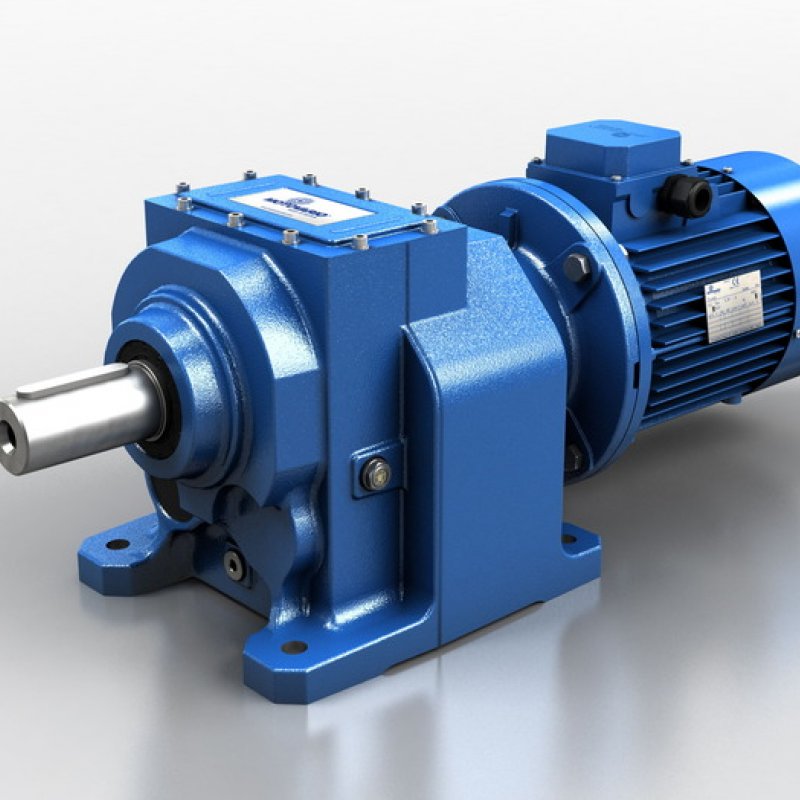

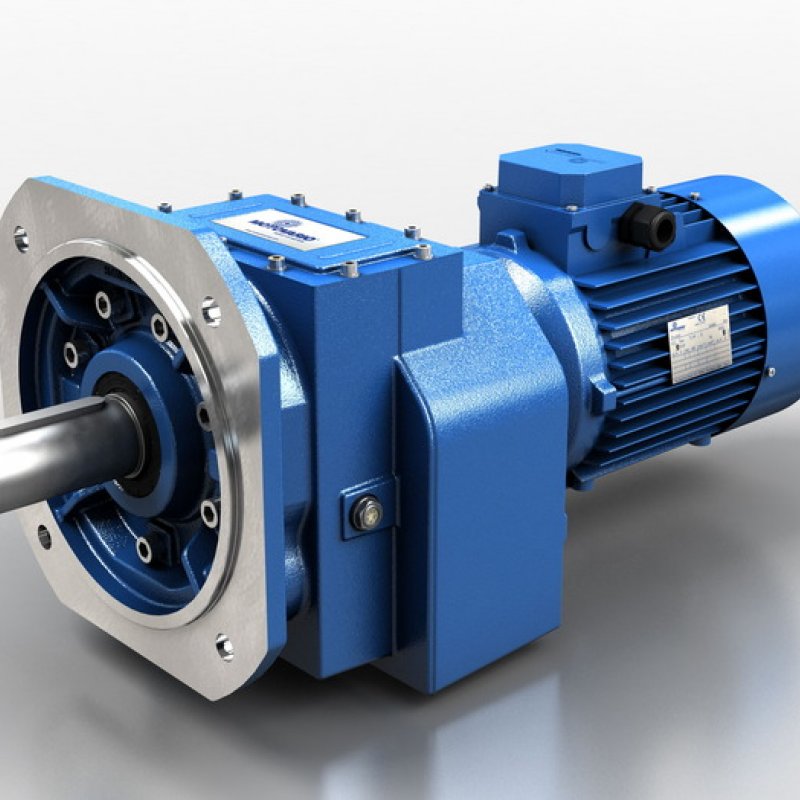

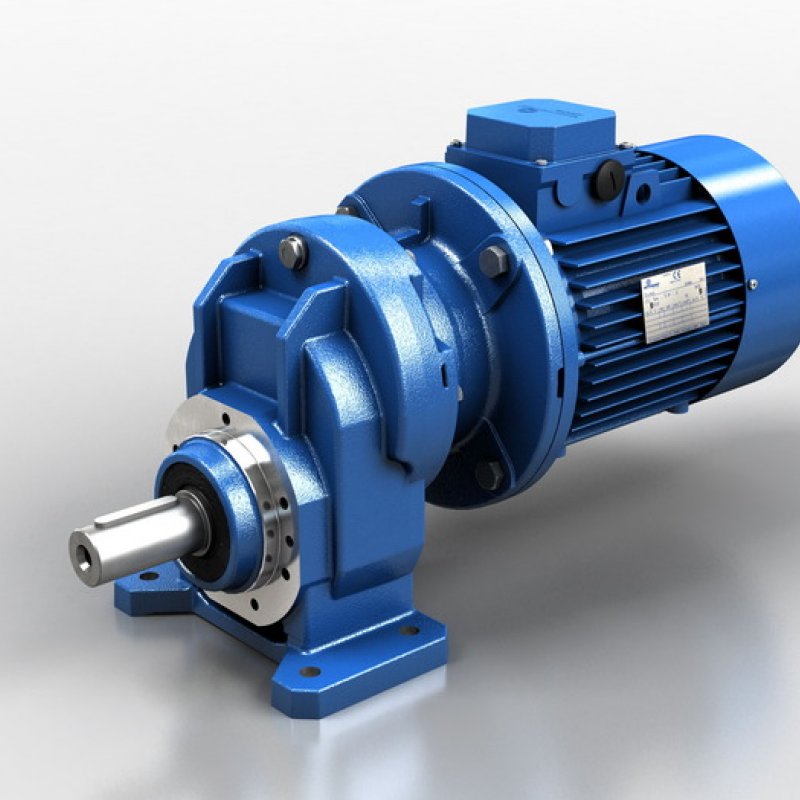

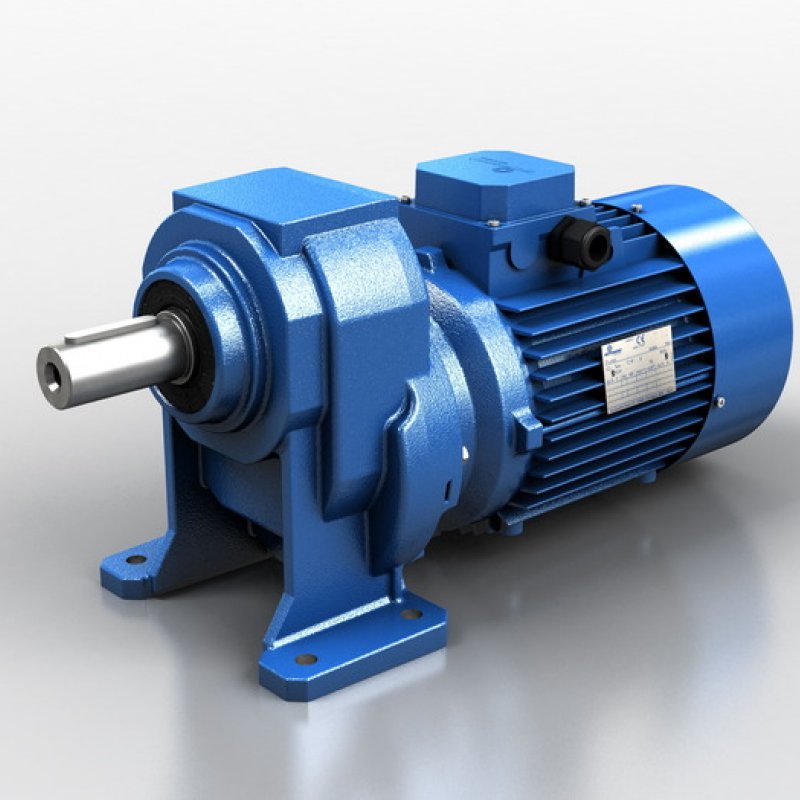

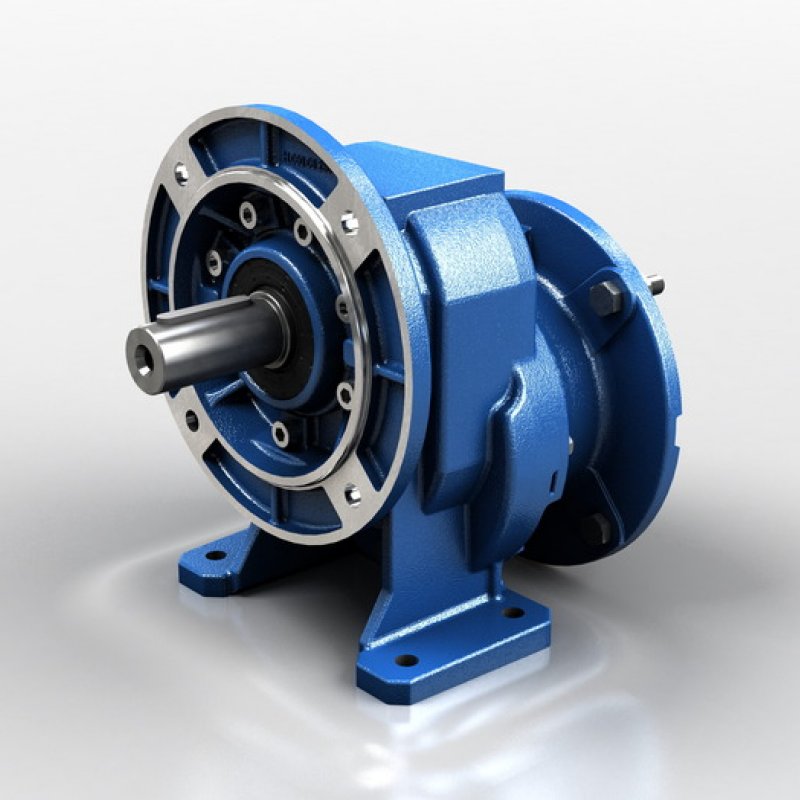

H SERISI
- Sizes: 030-040-050-060-080-100-125-140

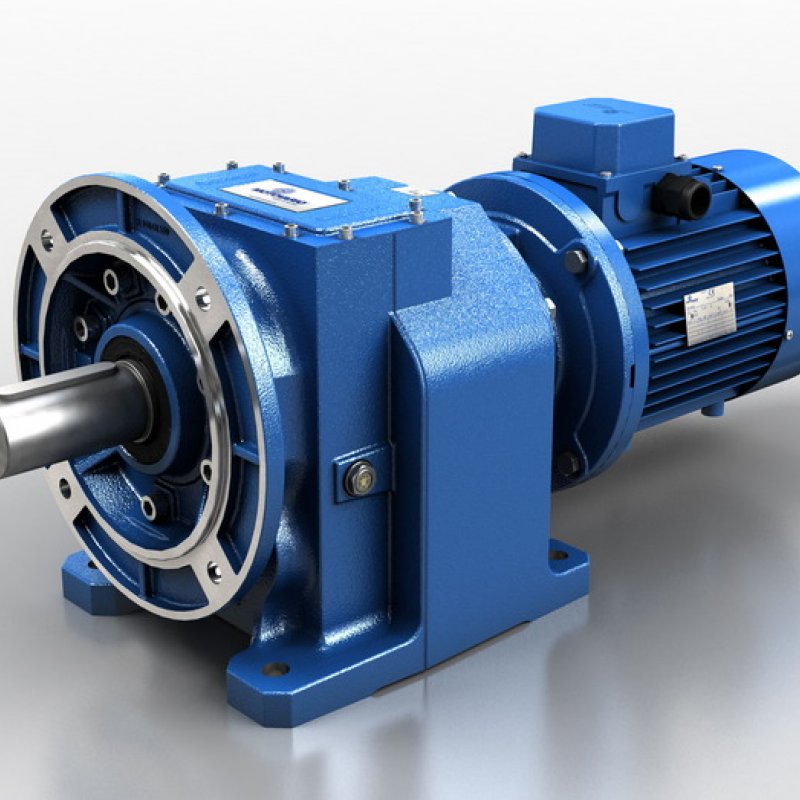

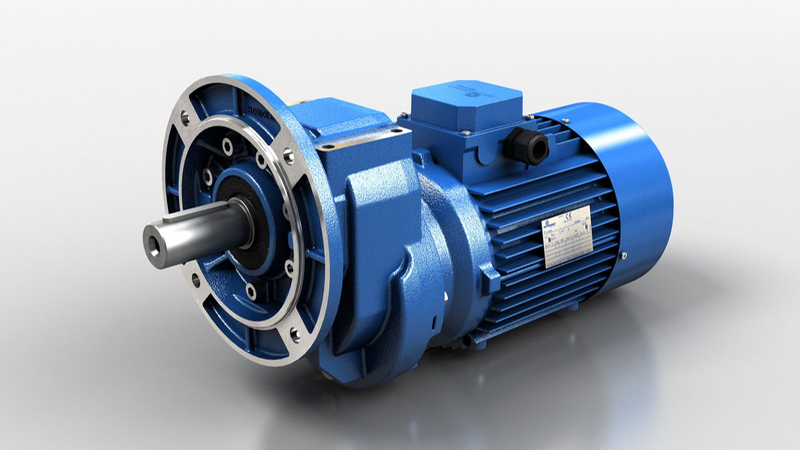

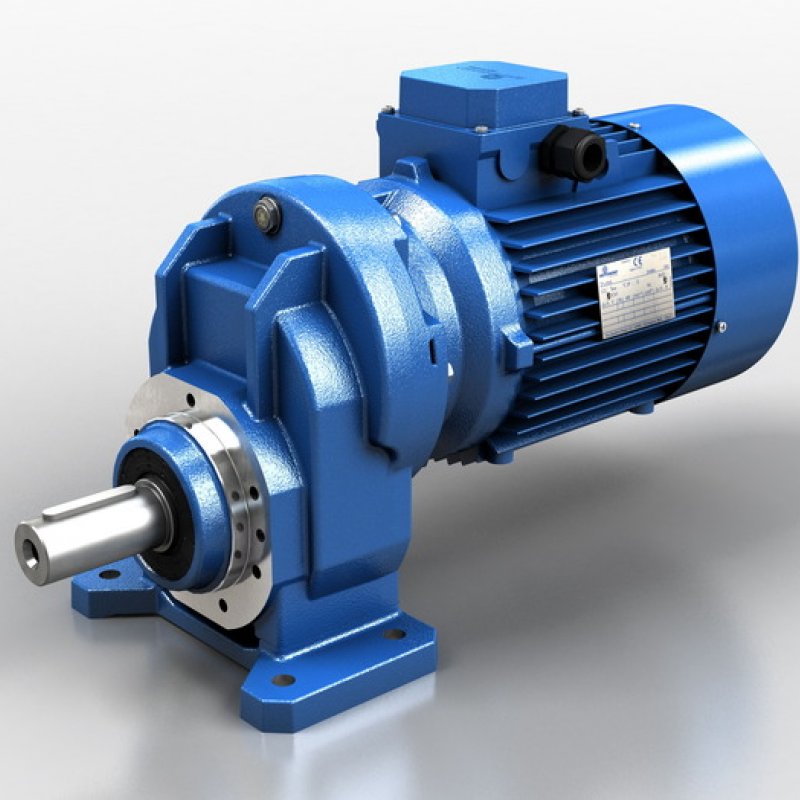

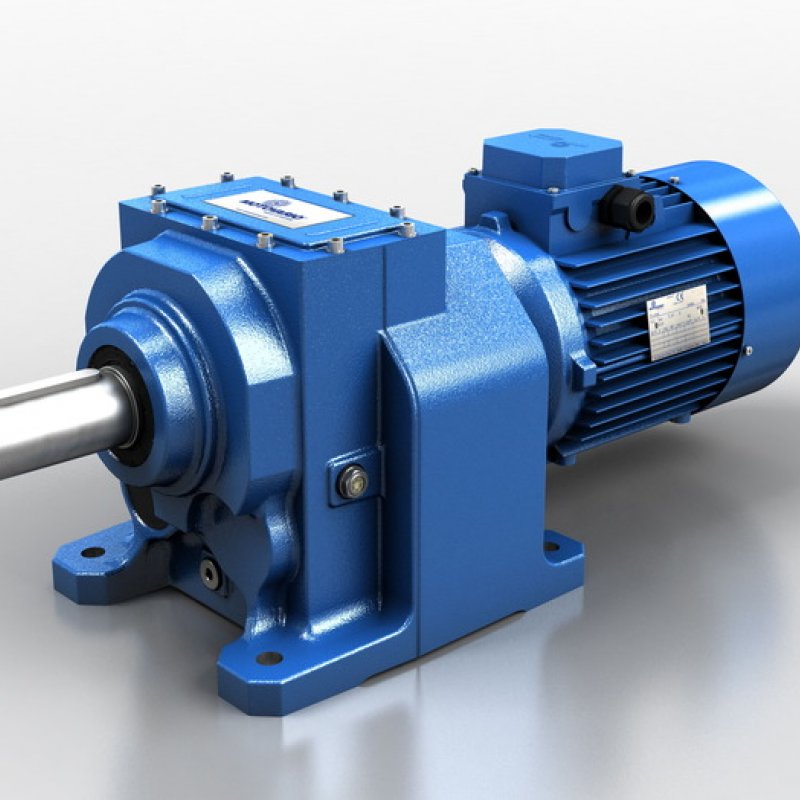

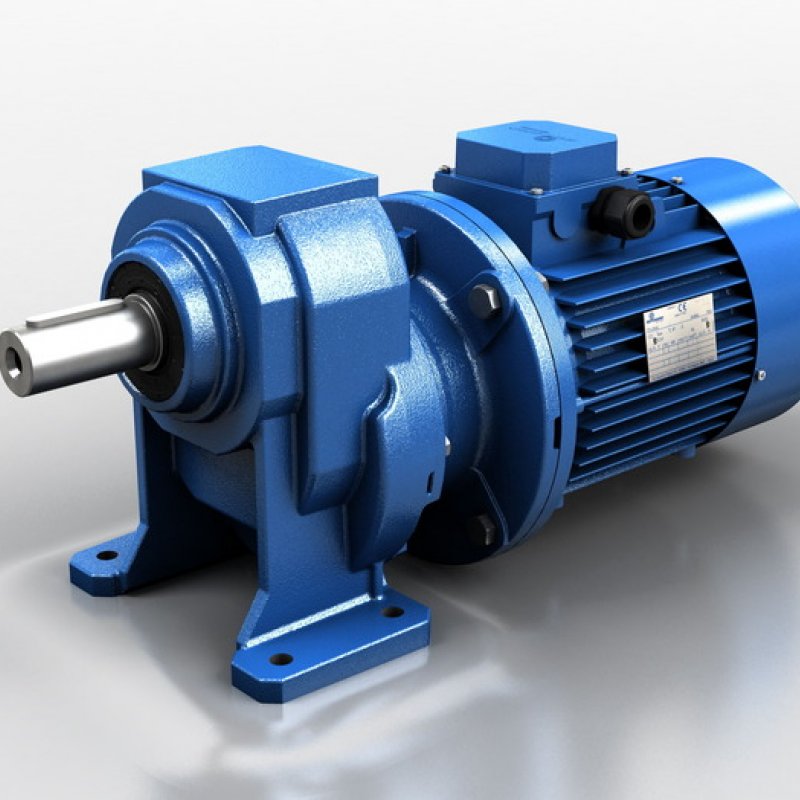

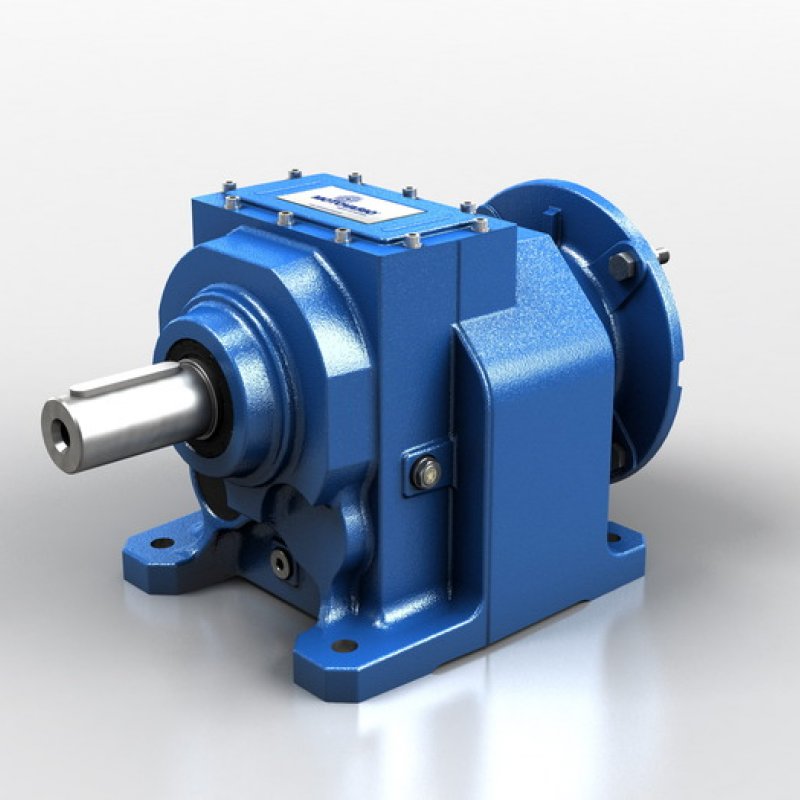

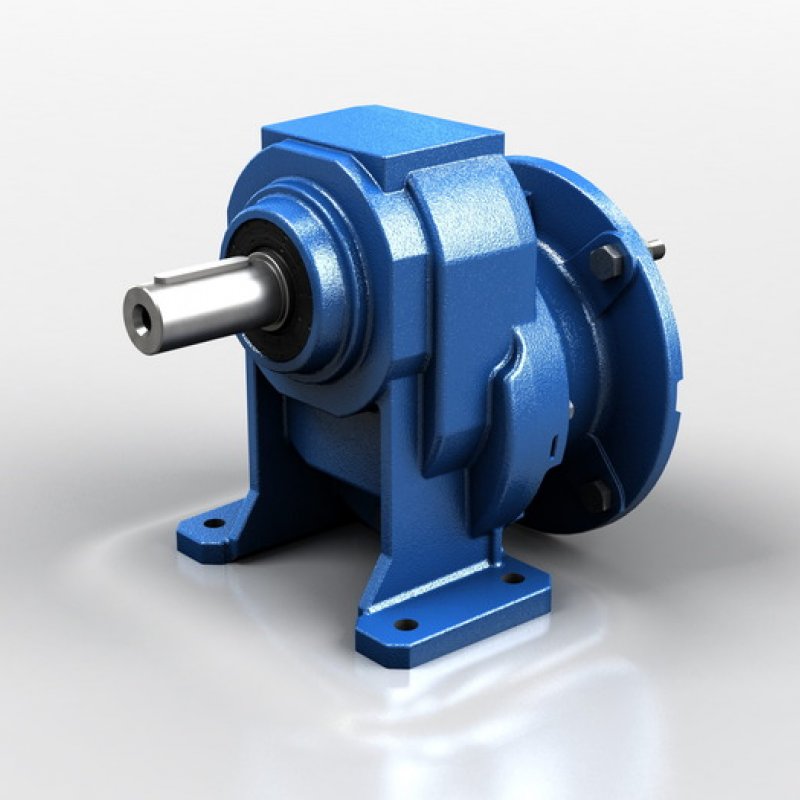

- Available versions: H – fitted for motor coupling, IH – with input shaft, CH – with compact motor, PH – fitted for motor coupling with flexible joint

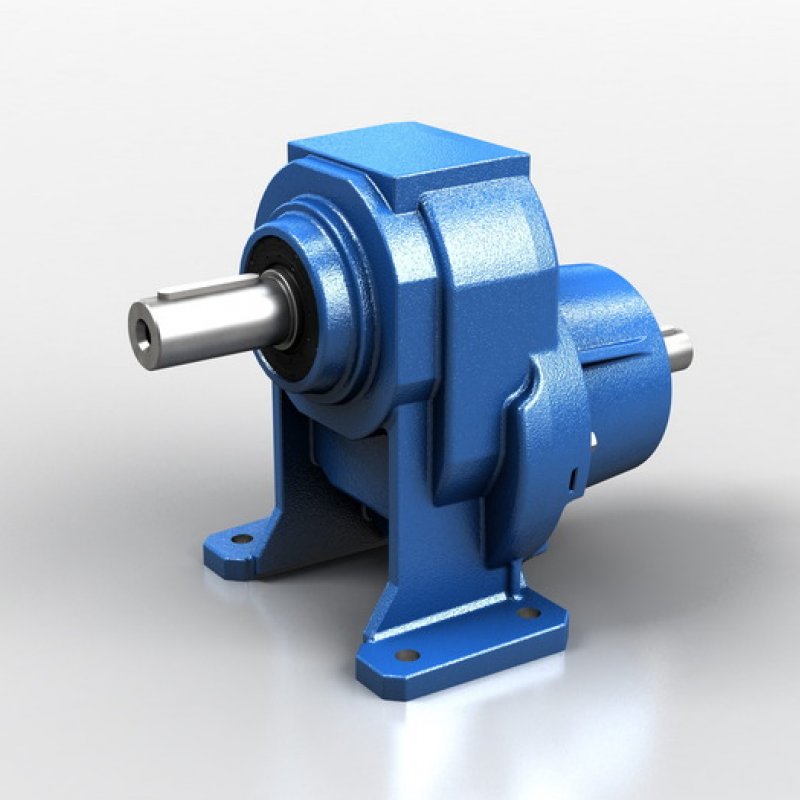

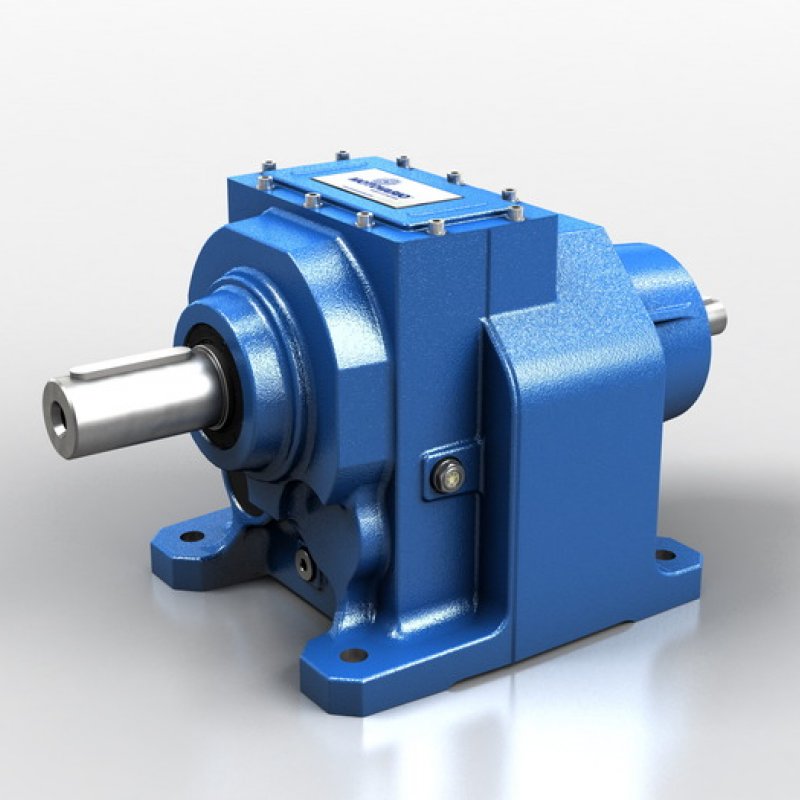

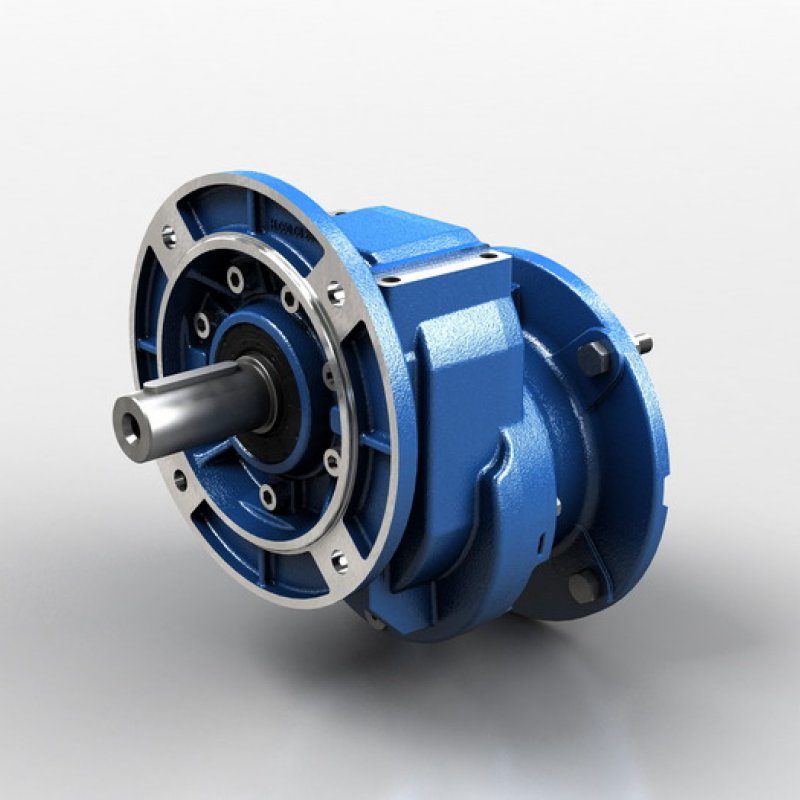

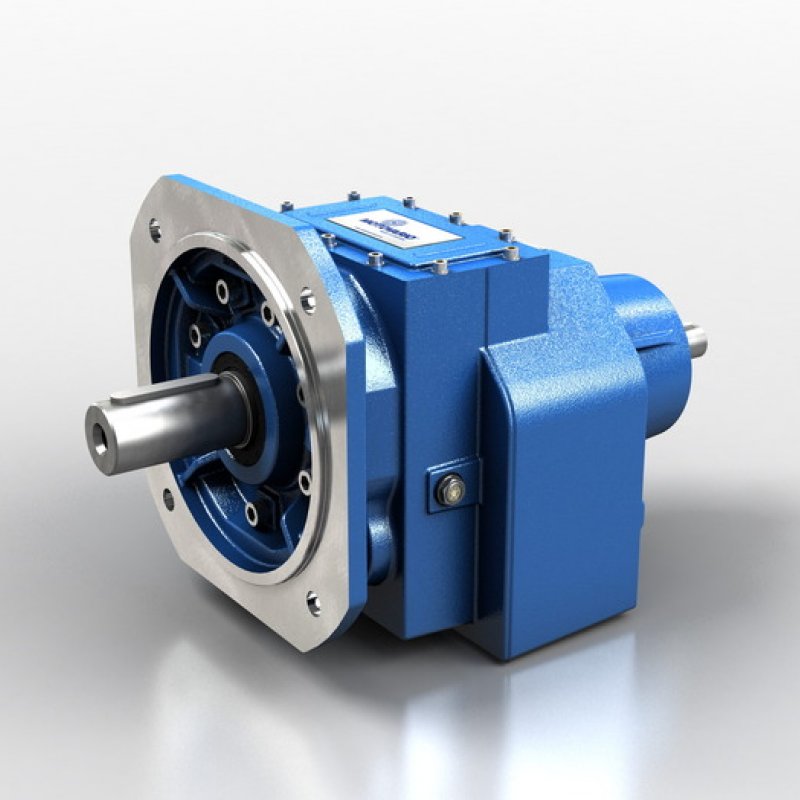

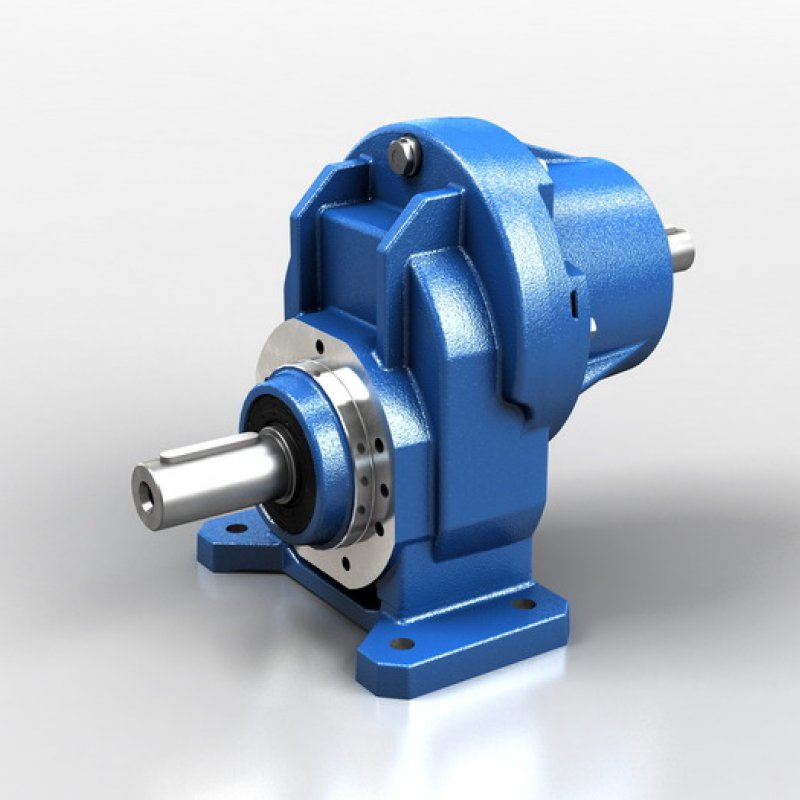

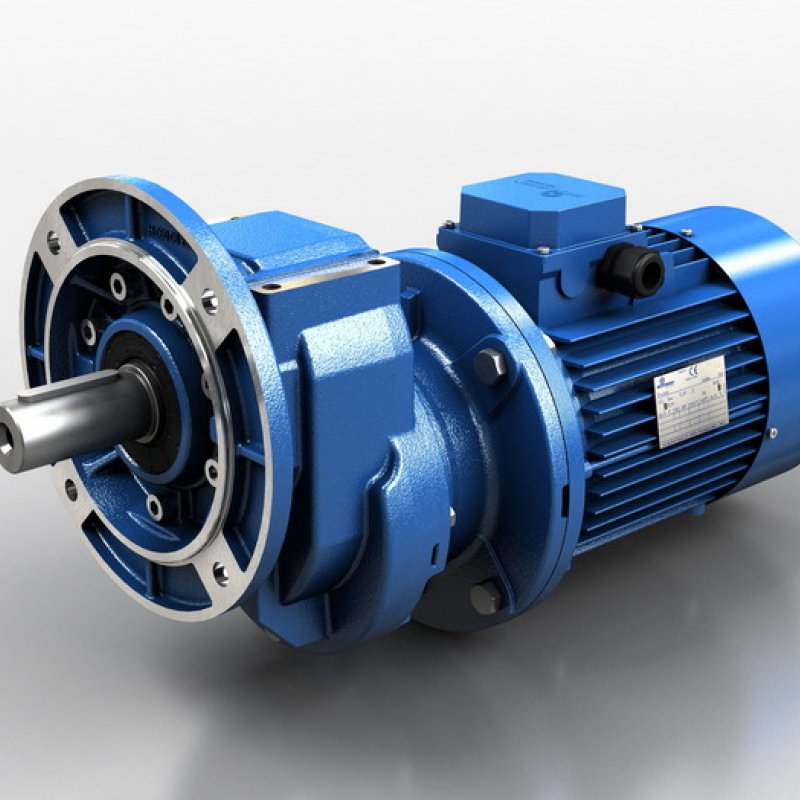

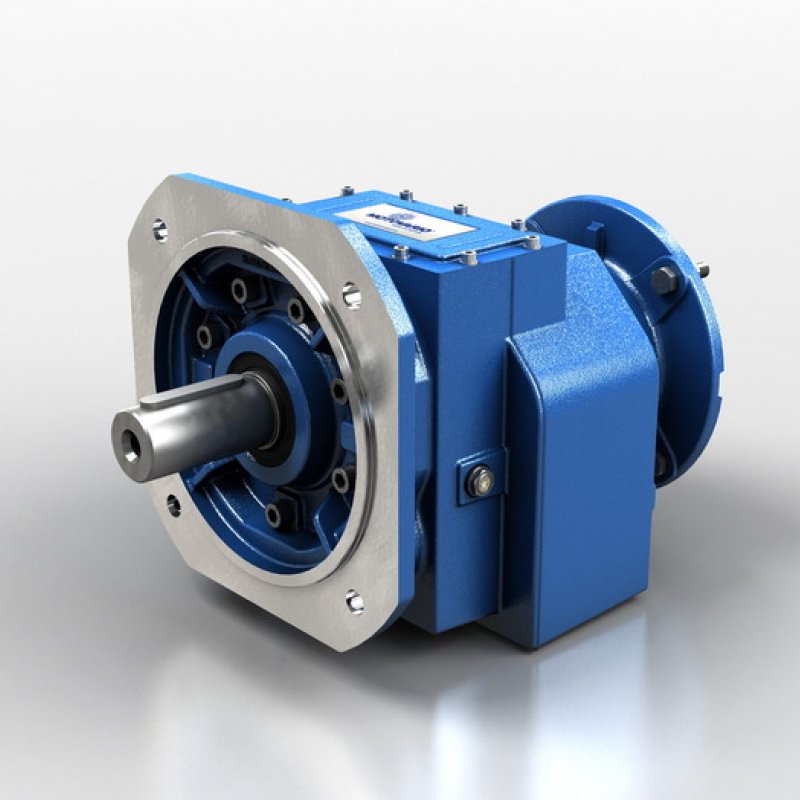

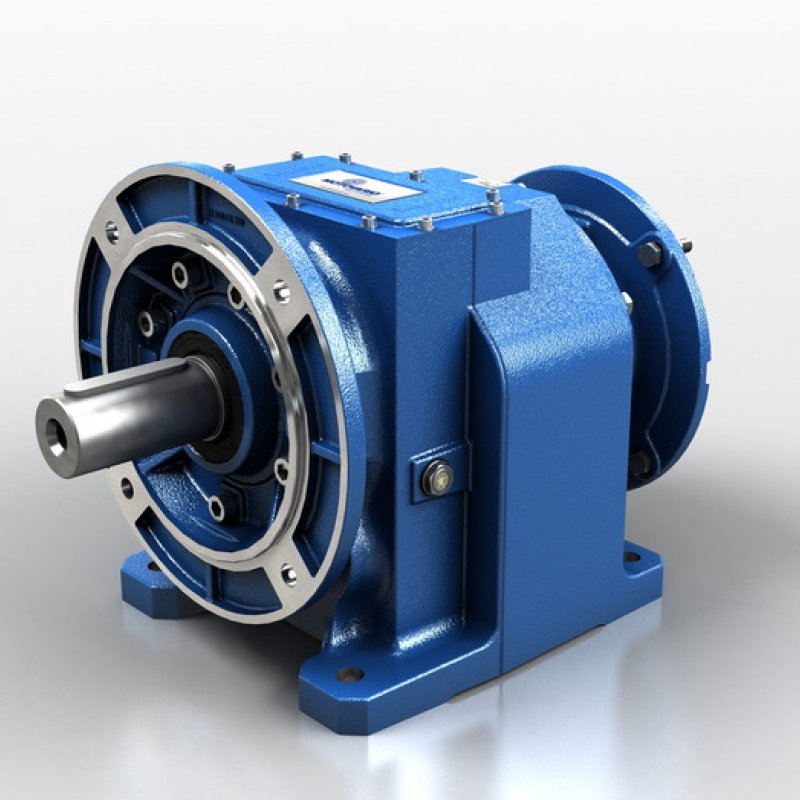

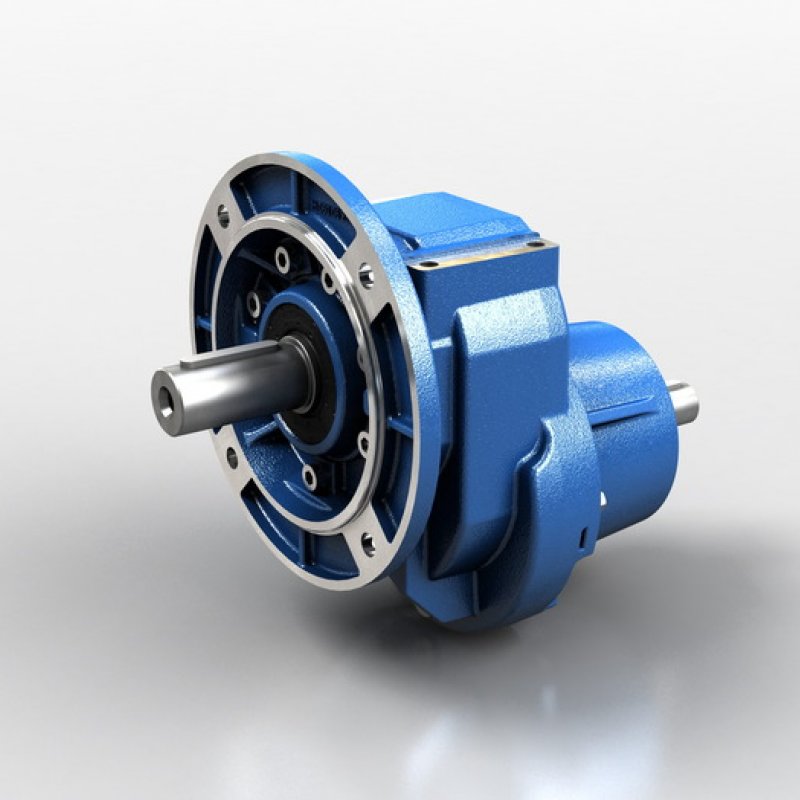

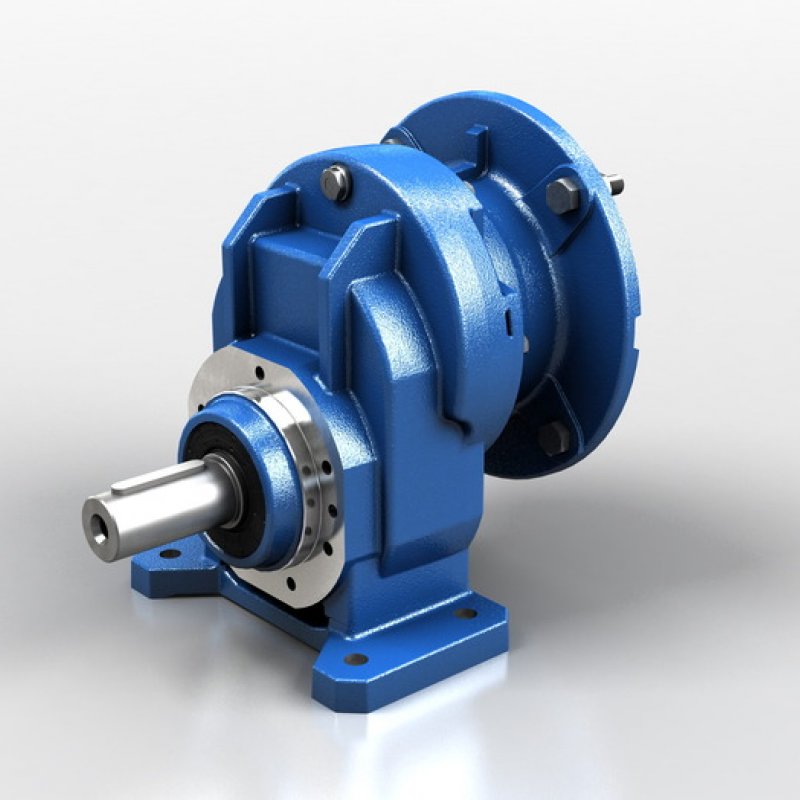

- Casing with feet, flange F or universal U
- Power up to 45 kW
- Gears hardened and tempered with shaved or ground profile
- Gearing with 1, 2 and 3 reduction stages
- Reduction ratios between 1,23 and 282,10
- Torque max 8.000 Nm and admissible radial loads max 55.000 N
- Cases in G200 grey cast iron for high strength and optimized with FEM analysis
- Load capacity calculated to ISO 6336 and verified according to AGMA 2001
- Painted with RAL 5010 blue epoxy-polyester powder according to DIN 1843
- Accessories: output flange, backstop device, viton oil seals
