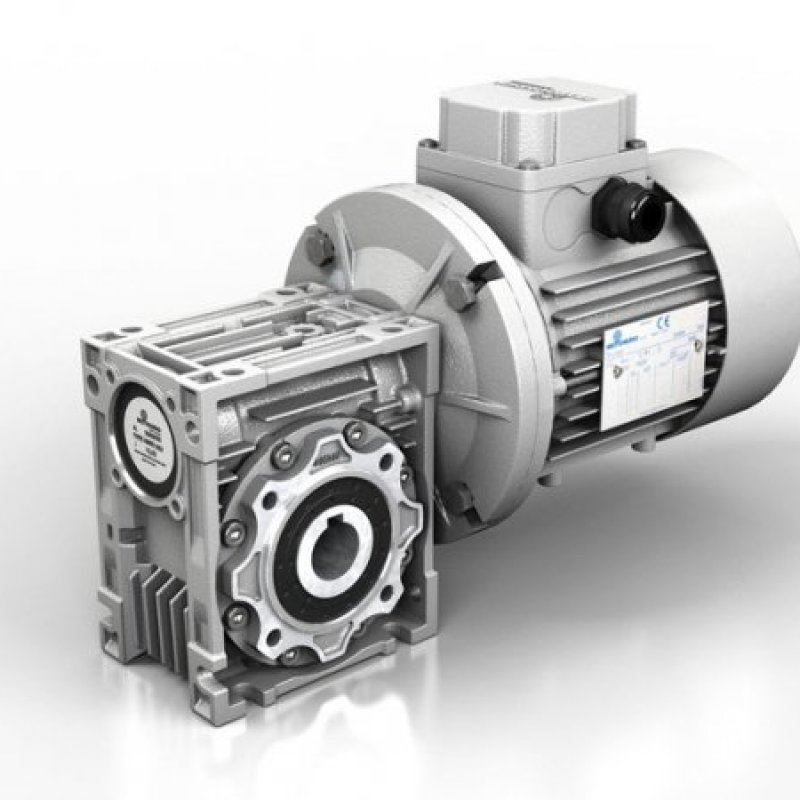

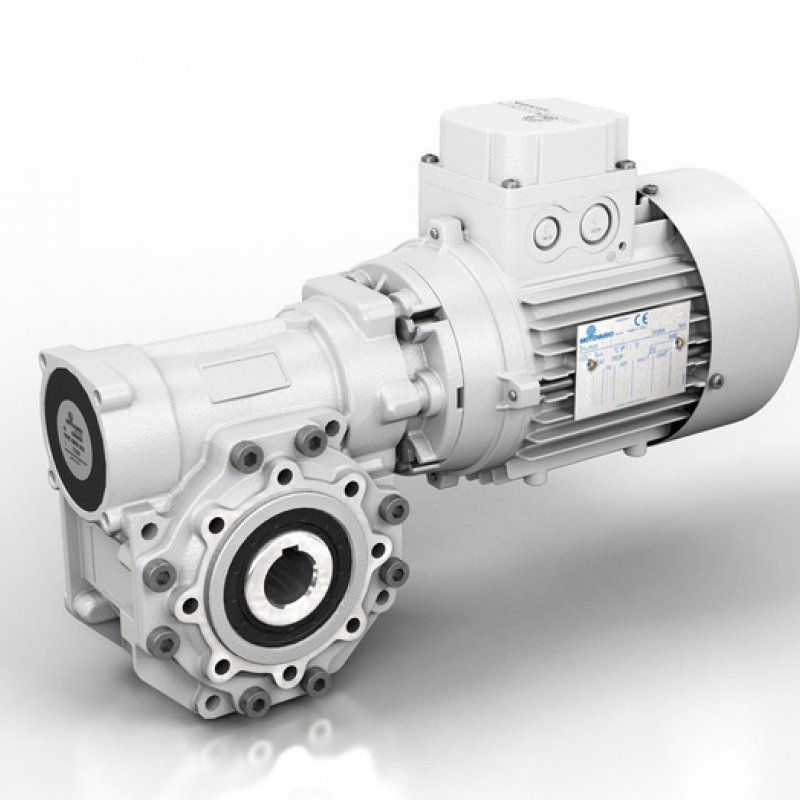

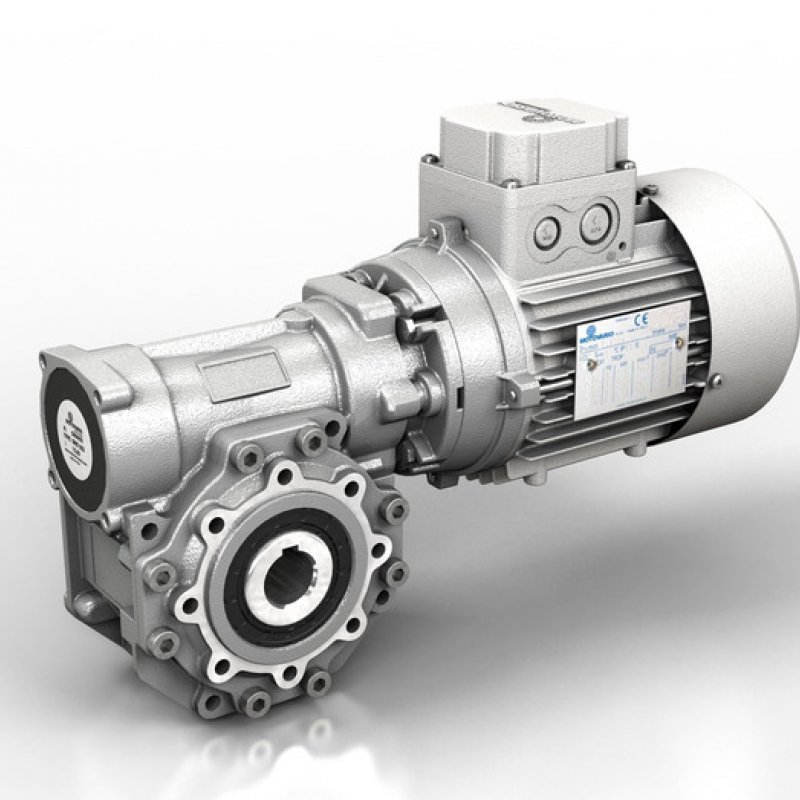

NMRX & SWX

• NMRX Sizes: 040-050-063-075-090
• SWX Sizes: 030-040-050-063-075-090-105
• Power up to 4.8 kW
• Reduction ratios between 5 and 100
• Max torque 660 Nm and admissible radial loads max 10.320 N
• Hollow low speed shaft AISI 304
• Synthetic oil
• Painted with RAL 5010 blue epoxy-polyester powder in according to DIN 1843
• Available SWX geared motors ANTICORROSION Series version with Optional Special anticorrosion painting Blue RAL 5010 / Grey RAL 9006 / White RAL 9010

SWFX

• For Food industries
• Sizes: 030-040-050-063-075-090-105
• Hollow low speed shaft AISI 316
• Specific adhesive nameplate for aggressive environments
• Specific input flange to seal Reducer/Motor coupling
• Anti-corrosion screws AISI 316
• Threaded holes sealed using pressed plugs without recesses
• “Sealed” casing
• Output seals FDA compliant
• Shielded bearings on low speed shaft 2RS type
• Food grade lubricant, Class UH1
• Double layer epoxy painting FDA approved white RAL 9010
