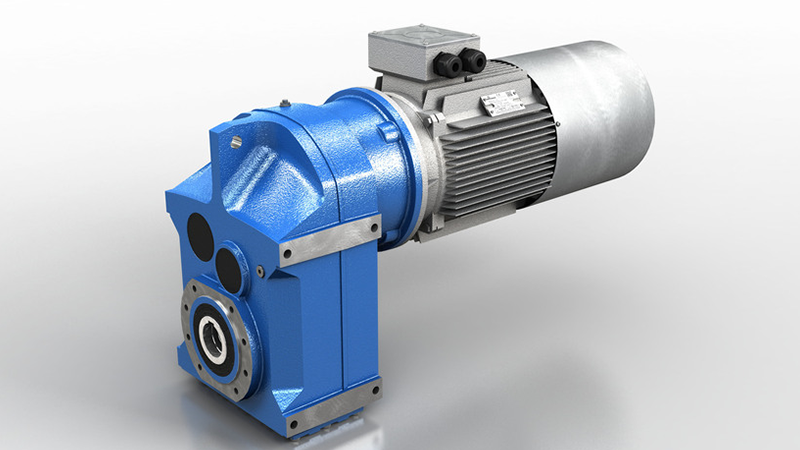

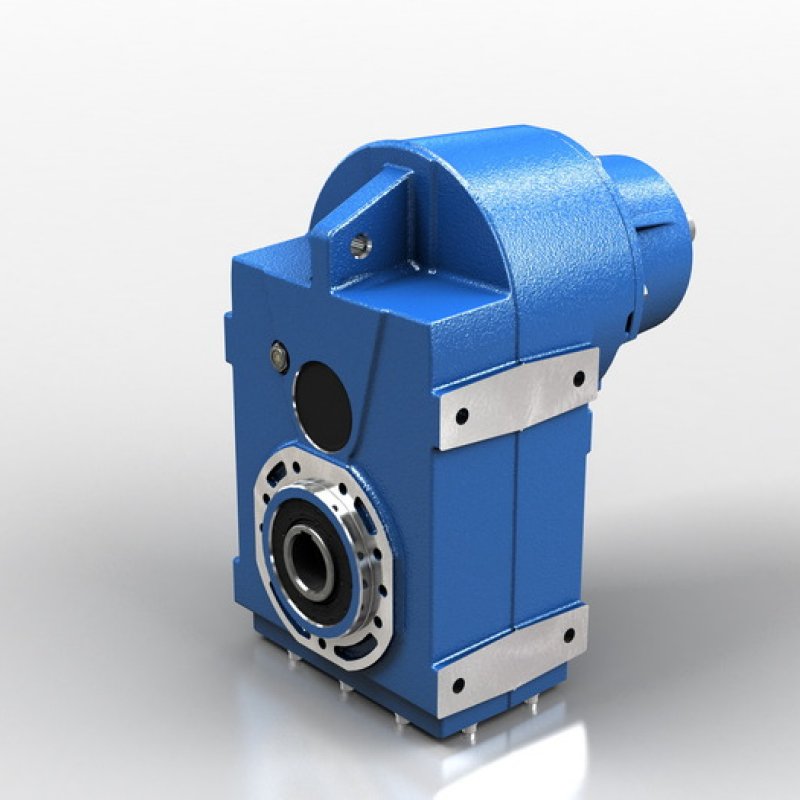

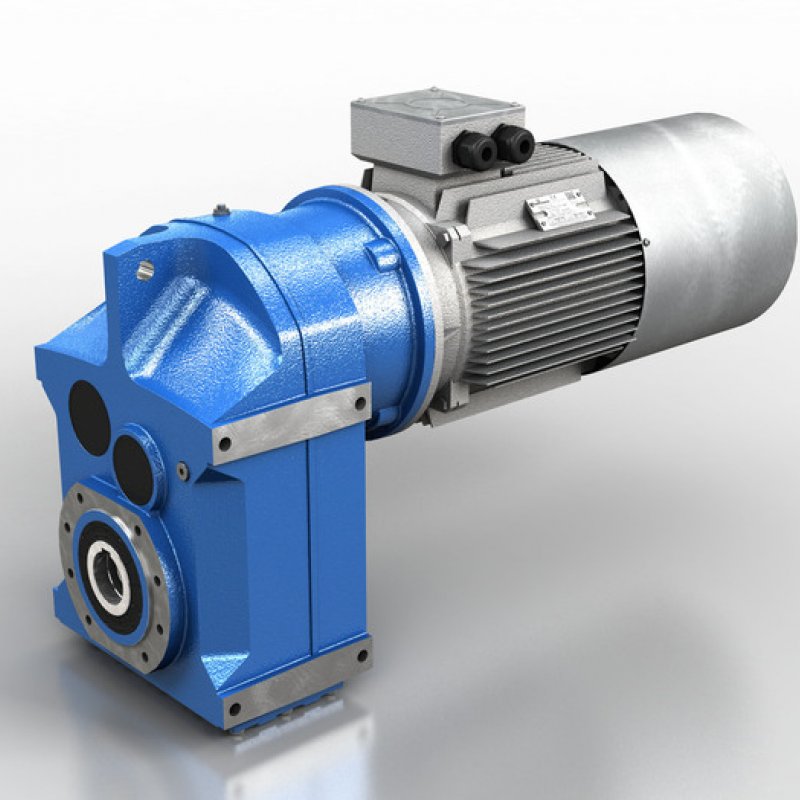

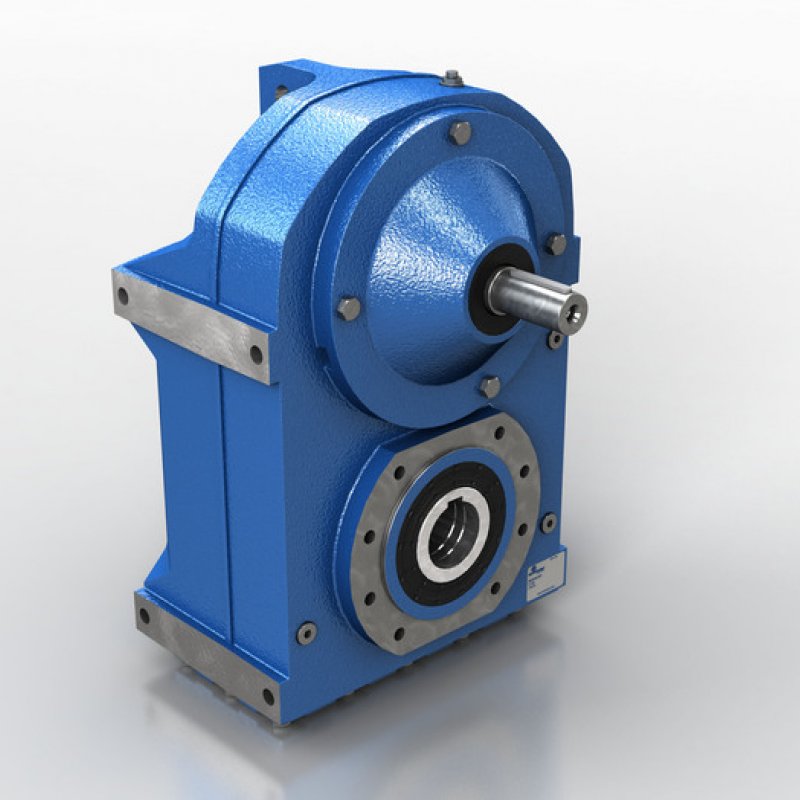

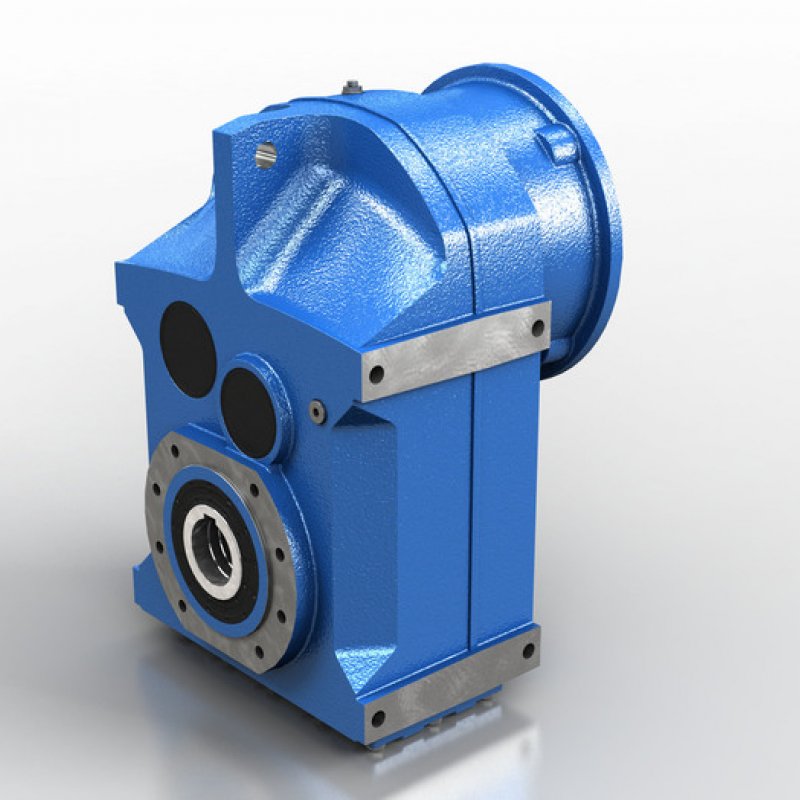

Sizes: 050-060-080-100-125-140-150

• Power from 0,12 kW up to 45 kW with three phase 4 pole motors
• Reduction ratios between 4,06 and 394,69
• Torque max 9.500 Nm
• Admissible radial loads max 30.000 N

Sizes: 050-060-080-100-125

• Universal casing
• Versions: S… C  Foot-flange mounting / Hollow shaf – S… D Foot-flange mounting / Solid shaft – S…  L Foot-flange mounting / Shrink disc shaft
• Gearing with 2 and 3 reduction stages
• Modularity
• Gears hardened and tempered with shaved or ground profile
• Cases in EN-GJL-200 grey cast iron for high strength and optimized with FEM analysis
• Excellent mechanical strength
• Load capacity calculated to ISO 6336, DIN 3990 and AGMA 2001
• Painted with RAL 5010  blue  epoxy-polyester powder according to DIN 1843

Sizes: 140-150

• Universal casing
• Versions:  S… C Foot-flange mounting / Hollow shaft, S… L Foot-flange mounting / Shrink disc shaft
• Gearing with 2 and 3 reduction stages
• Gears hardened and tempered with ground profile
• Cases in EN-GJL-200 grey cast iron
• Load capacity calculated to ISO 6336, DIN 3990 and AGMA 2001
• Gearboxes supplied without lubricant
• Painted with RAL 5010  blue  epoxy-polyester powder according to DIN 1843
